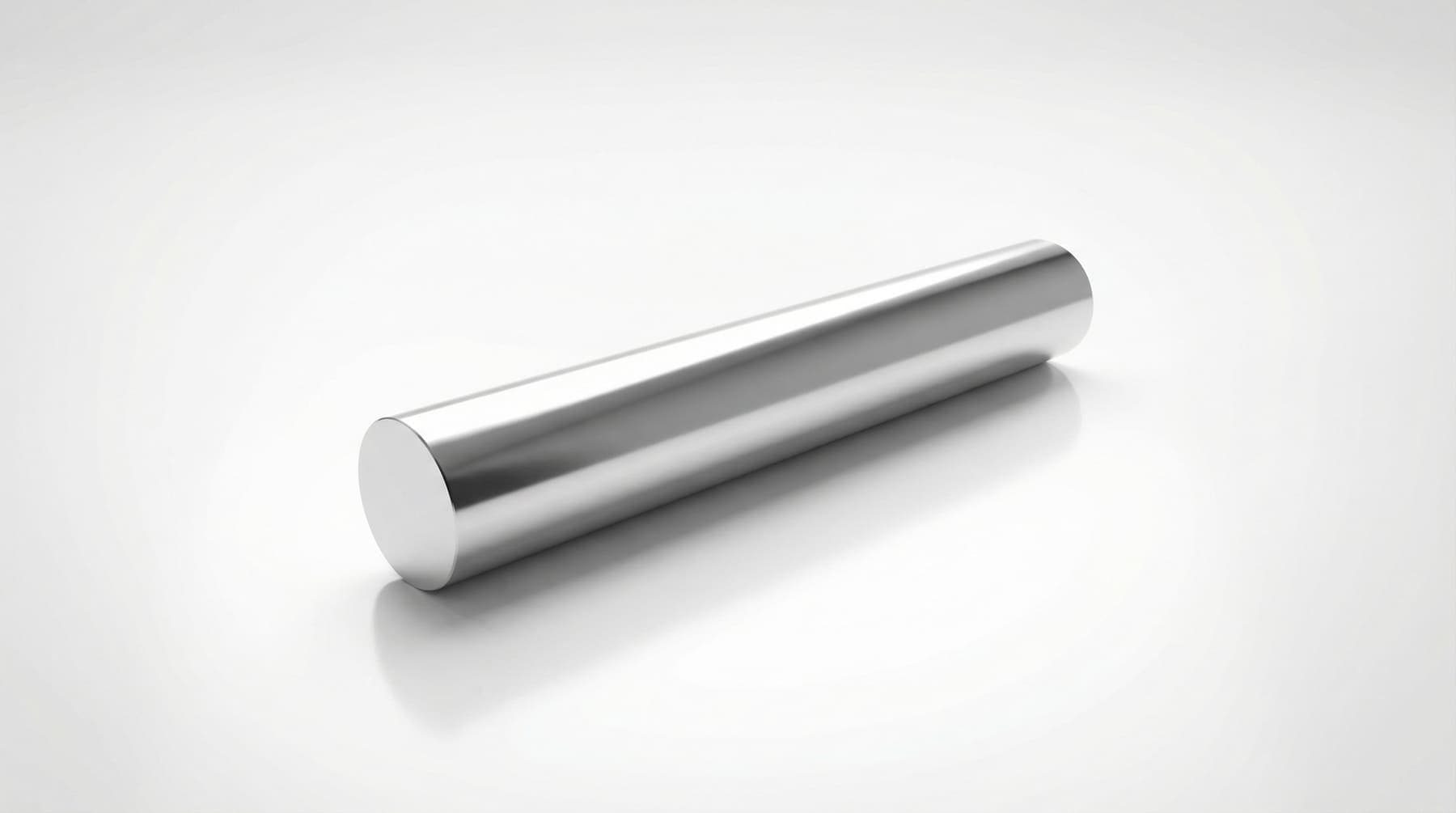

EC1350 Rod
E-Al99.5 — Electrical Conductor Grade Wire Rod
Overview
Minimum 61% IACS electrical conductivity, ultra-low impurity levels, and excellent drawability — the global standard for overhead transmission lines and electrical cable manufacture
Applications
Common Alloys
Properties
Manufacturing Process
Step 1
Billet Preparation
EC1350 aluminium billets preheated in a gas-fired tunnel furnace to 450–500 °C for uniform temperature distribution.
Step 2
Continuous Casting & Rolling (CCR)
Molten metal cast via twin-belt caster and immediately hot-rolled in-line (Properzi/CCR process) for energy-efficient rod production.
Step 3
Hot Rolling
Continuous multi-stand rolling mill reduces rod diameter to 6–12 mm in multiple passes at 400–480 °C.
Step 4
Quench & Temper
Water quench after the final roll pass achieves T1 temper, locking in conductivity and providing a clean, bright surface.
Step 5
Coiling
Rod coiled on a Stelmor-type cooling conveyor; controlled air cooling prevents surface oxidation and ensures uniform temper.
Step 6
Inspection & Dispatch
Electrical conductivity (% IACS) measured per coil; surface, dimensional, and tensile tests performed. Coils tagged with full traceability data.
Step 1
Billet Preparation
EC1350 aluminium billets preheated in a gas-fired tunnel furnace to 450–500 °C for uniform temperature distribution.
Step 2
Continuous Casting & Rolling (CCR)
Molten metal cast via twin-belt caster and immediately hot-rolled in-line (Properzi/CCR process) for energy-efficient rod production.
Step 3
Hot Rolling
Continuous multi-stand rolling mill reduces rod diameter to 6–12 mm in multiple passes at 400–480 °C.
Step 4
Quench & Temper
Water quench after the final roll pass achieves T1 temper, locking in conductivity and providing a clean, bright surface.
Step 5
Coiling
Rod coiled on a Stelmor-type cooling conveyor; controlled air cooling prevents surface oxidation and ensures uniform temper.
Step 6
Inspection & Dispatch
Electrical conductivity (% IACS) measured per coil; surface, dimensional, and tensile tests performed. Coils tagged with full traceability data.
Chemical Composition
EN 573-3 / AA
Max % unless range shown. Balance: Al.
| Alloy | Chem. Symbol | Si | Fe | Cu | Mn | Mg | Cr | Zn | Ti |
|---|---|---|---|---|---|---|---|---|---|
| EC1350 | E-Al99.5 | 0.10 | 0.40 | 0.05 | 0.01 | — | — | 0.05 | 0.03 |
Standards Compliance
| Standard | Description |
|---|---|
| ASTM B230 | EC Aluminium Wire |
| ASTM B398 | Aluminium Alloy Wire |
| ASTM B399 | AAAC Conductors |
| ASTM B941 | Aluminium Alloy Wire |
| IEC 60889 | Hard Drawn Aluminium Wire |
Wire Size & Application
| Diameter | Common Application |
|---|---|
| 0.25 mm | Fine Mesh |
| 0.30 mm | Cable Shielding |
| 0.50 mm | Braiding |
| 0.80 mm | Weaving |
| 1.20 mm | Welding |
| 2.00 mm | Fasteners |
| 3.50 mm | General Engineering |
Temper / Hardness
| Temper | Description |
|---|---|
| O | Annealed (Soft) |
| H12 | Quarter Hard |
| H14 | Half Hard |
| H18 | Full Hard |
| H19 | Extra Hard |
Certification & Finish
Mill Test Certificate (MTC)
- Chemical Composition
- Mechanical Properties
- Heat Number
- Batch Number
- Dimensions
NABL / Government Lab Certificates
- UTS
- Yield Strength
- Conductivity
- Elongation
- Chemical Composition
- Hardness
Finish & Packaging
Surface Finish
Packaging Options
